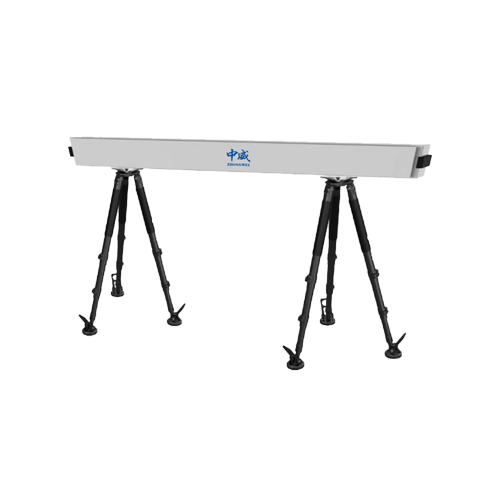

Phased Array Slope Rockfall Warning Radar CP-PA-RX1

Phased array slope real-time monitoring radar is based on the principle of true aperture phased array beam differential interferometry measurement. It extracts the small deformation displacement information of the surface of the observation scene in real time, and realizes the safety guarantee of various geological bodies and major projects. The product is portable and can be deployed by one person. It has non-contact monitoring, high-precision high-frequency real-time measurement, high portability, large-angle scanning, all-day and all-weather, not affected by clouds, rain and fog, and not affected by vegetation blowing/animal movement, and is easy to deploy.

High refresh rate
Compared with traditional synthetic aperture slope radar, CP-PA-RX1 has a higher data update rate, which means that CP-PA-RX1 radar can provide updated monitoring information at a faster speed and respond quickly to geological changes.
Simultaneous monitoring
Traditionally, slope and rockfall monitoring requires two separate devices to complete separately, but the CP-PA-RX1 integrates these two functions into one, allowing users to monitor rockfall and slope deformation simultaneously with a single device.
High accuracy
The CP-PA-RX1 slope monitoring radar adds a special feature, which is the ability to detect and track the intrusion of people and animals. This is particularly important in protecting the security of the area where the monitoring equipment is located, avoiding unauthorized access and potential damage risks.
Modular design
The antenna can be soft-defined according to the actual situation to improve the frame rate and reduce power consumption

Maximum detection distance	6km
Pitch angle range	60°
Distance resolution	0.125m
Angular resolution	5mrad

Phased Array Slope Rockfall Warning Radar CP-PA-RX1

High refresh rate

Simultaneous monitoring

High accuracy

Modular design
